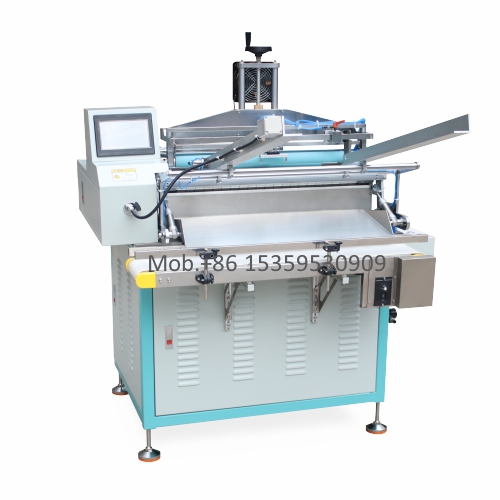

FS-AL350/600 Fully Automatic Cans Paper Tubes Labelling Machine
Main Features:
Main Features:
Application: It is mainly used for paper tube label. It can apply glue to both ends or full page of the labels.
1. No need to change any mold parts, just adjust the positioning of labels and tubes and set the specification data through the human-machine interface.
2. When operation, the labels need to be put into the label conveyor in batches, worker put the tubes manually on the tubes shelf, the labelling machine will be loading tubes, loading label, gluing label, labeling the tubes, and automatically discharging the finished labelled tubes. All actions are completed automatically in one time. Which it's more labor saving and higher efficient!
3. Adopt PLC control system and touch screen, with simple setting and convenient operation.
Main Configurations:1. No need to change any mold parts, just adjust the positioning of labels and tubes and set the specification data through the human-machine interface.
2. When operation, the labels need to be put into the label conveyor in batches, worker put the tubes manually on the tubes shelf, the labelling machine will be loading tubes, loading label, gluing label, labeling the tubes, and automatically discharging the finished labelled tubes. All actions are completed automatically in one time. Which it's more labor saving and higher efficient!
3. Adopt PLC control system and touch screen, with simple setting and convenient operation.
| Model | FS-AL350 | FS-AL650 |
| Tubes Height | 80-350mm | 80-600mm |
| Tubes Diameter |
Φ35-126mm Φ15-50mm for Slim Tubes |
Φ28-130mm |
| Label GSM | 128-157g | 128-157g |
| Positioning Accuracy | ±0.3-1.0mm | ±0.3-1.0mm |
| Glue Type | Hotmelt Glue | Hotmelt Glue |
| Glue Coating Way | Both Ends/Full Page | Both Ends/Full Page |
| Unloading Way | Manual/Automatic | Manual/Automatic |
| Label Speed | 20-35Psc/min | 20-35Psc/min |
| Motor Speed | 0-1400speed | 0-1400speed |
| Control System | PLC+Integrated Temperature Control | PLC+Integrated Temperature Control |
| Air Pressure | 0.3-0.5Mpa | 0.3-0.5Mpa |
| Rated Power | 2.3kw | 3.3kw |
| Voltage | 220v 50Hz,Single Phase | 220v 50Hz,Single Phase |
| Machine Size | 100*90*135cm | 130*90*135cm |
| Machine Weight | 300kg | 450kg |
| Worker | 1Person for 2-3Machine | 1Person for 2-3Machine |
Remarks:More details and special requirements feel free to contact us!
